Epson Connecting to an Existing Wi-Fi Network Setup



Epson Connecting to an Existing Wi-Fi Network Setup

You can set up your scanner to interact with your computer system using a cordless router or gain access to point. The cordless router or gain access to point can be linked to your computer system over a wireless or wired network.

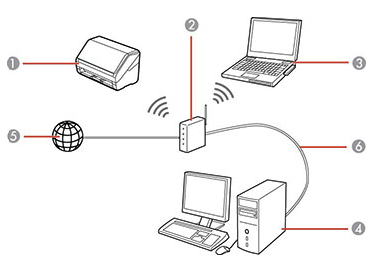

  1. Epson scanner
  2. Wireless router or access point
  3. Computer system with a wireless interface
  4. Computer system
  5. Web
  6. Ethernet cable (used just for wired connection to the cordless router or access point).

Epson Manually Connecting to a Wi-Fi Router Using EpsonNet Config

You can use EpsonNet Config to connect the Epson scanner to an existing Wi-Fi network on a router or access point.
Keep in mind: You must have a computer system with a cordless adapter to set up the connection.

Switch on the scanner.
  • Connect the computer system to the scanner using a direct Wi-Fi connection.
  • Do one of the following to begin EpsonNet Config:
  • Windows 10: Click > All apps > EpsonNet > EpsonNet Config.
  • Windows 8. x: Browse to the Apps screen and select EpsonNet Config.
  • Windows (other versions): Click or Start, and choose All Programs or Programs. Select EpsonNet > EpsonNet Config > EpsonNet Config.
  • OS X: Open the Applications folder, select Epson Software application > EpsonNet > EpsonNet Config > EpsonNet Config.
  • Select your scanner from the list and click Configuration.
  • Select Network User interface > Network > Standard (Wireless).
  • Select the following settings for your infrastructure connection:
  • Interaction mode: Select Infrastructure.
  • SSID: Get in the SSID of the cordless router or access point.
  • Security level: Select the wireless connection's security level.
  • WEP Settings or WPA Settings: Go into the wireless connection's security secret.
  • Click Transmit.

Open the Gadget menu and select Quit.
Switch off the scanner.

Disconnect the computer system or device's direct Wi-Fi connection, then connect the computer or device to the router or access point.

Switch on the scanner. When the Wi-Fi light on the scanner remains on, the connection is established.
Establish network scanning on your computer system.
